Feature
- Very high bonding strength
- High temperature resistance
- Excellent chemical resistance
- Resistance against oil and solvents
- Bonds remain flexible and elastic
tesa HAF® 8401

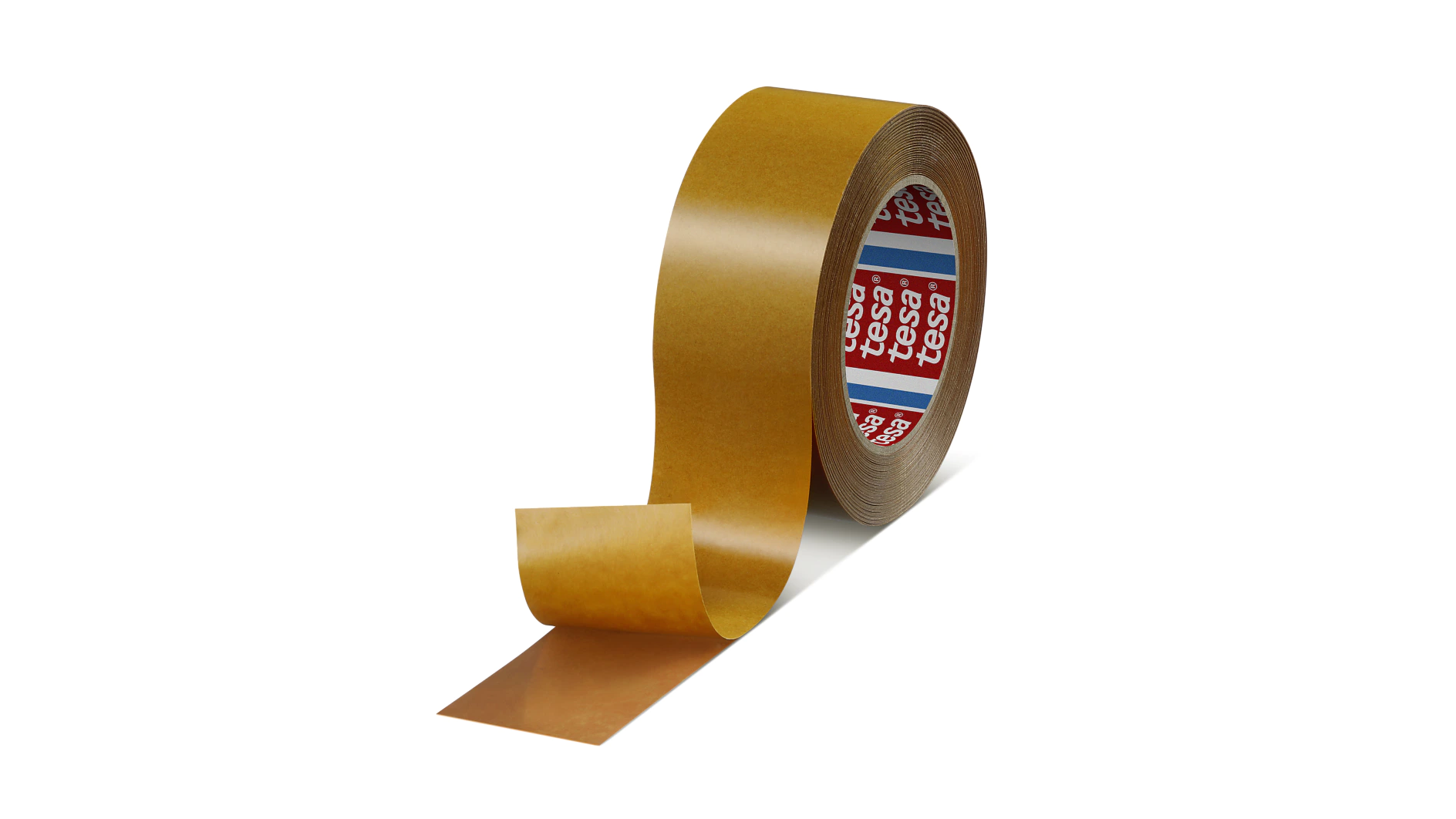

tesa HAF® 8401 is a reactive heat activated film based on phenolic resin and nitrile rubber. This amber double sided tape has no backing. It is protected by a strong paper liner and can easily be slit and die cut.
It is activated by heat and pressure applied over a certain period of time.
Application
It is suitable for bonding of all thermal resistant materials such as metal, glass, plastic, wood and textiles.
- High-strength splicing (overlap splice)
- Structural bonding
- Magnet bonding in electric motors
- Friction liners for clutches
Additional Information
Processing
tesa HAF® 8401 is not self adhesive. It is activated by heat and pressure over a certain interval. The following values are recommendations for machine parameters to start with. Please note that optimum parameters strongly depend on the type of machine, particular materials as well as customer requirements.
- Pre-lamination: tesa HAF® 8401 is laminated before curing. For this process we recommend a temperature between 120 °C and 140 °C.
- Bonding: The bonding conditions temperature, pressure and time depend on the application. Following parameters can be regarded as a guideline:
Splicing application:
- Temperature: 120-220 °C
- Pressure: >2 bar
- Time: 15–90 s.
Friction liners for clutches:
- Temperature: 180–230 °C
- Pressure: > 8 bar
- Time: 3–30 min
Magnet bonding:
- Temperature: 140–180 °C
- Pressure: > 6-10 bar
- Time: 2-5 min
Structural bonding:
- Temperature: 180–220 °C
- Pressure: > 10-15 bar
- Time: > 3-30 min
Bonding strength values were obtained under standard laboratory conditions. Value is guaranteed clearance limit checked with each production batch (Material: Etched aluminium test specimen / Bonding conditions: temperature = 120 °C; pressure = 10 bar; time = 8 min). To reach maximum bonding strength surfaces should be clean and dry.
